WFilter deployment with netgear gs748at

4.0

Author:

IMFirewall Software

HomePage:

http://www.imfirewall.us

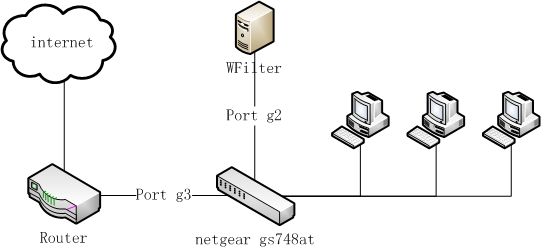

An office network is connected by a netgear gs748at switch, the network topology diagram:

Figure 1

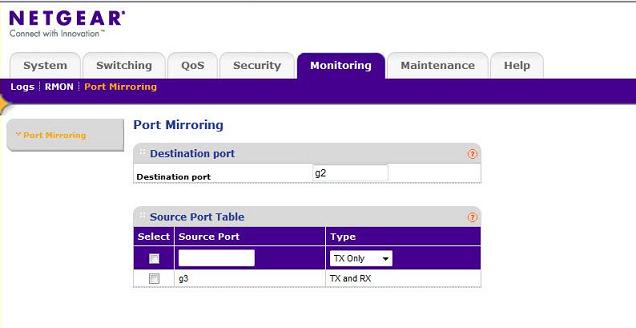

In this network, we only need to do port mirroring in the netgear gs748at switch to do monitoring and filtering. The below diagram shows the mirroring settings of the netgear switch:

Figure 2

As in the diagram above, port "g3" is connected to the internet router and port "g2" is connected to the WFilter computer.

To check whether port mirroring is properly configured, please check: How to check whether port mirroring is properly configured?

For more WFilter deployment examples, please check: WFilter Deployment Examples.
