WFilter deployment with Dlink 3226 switch

4.0

Author:

IMFirewall Software

HomePage:

http://www.imfirewall.us

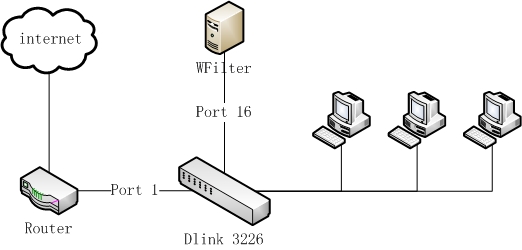

A network is connected with a dlink 3226 switch. The network topology diagram:

Figure 1

In this network, we only need to do port mirroring in the Dlink 3226 switch to do monitoring and filtering. The below diagram shows the mirroring settings of the dlink switch:

Figure 2

As in the diagram above, port 16 is connected with the router and port 1 is connected to the computer with WFilter installed on.

To check whether port mirroring is properly configured, please check: How to check whether port mirroring is properly configured?

For more WFilter deployment examples, please check: WFilter Deployment Examples.
